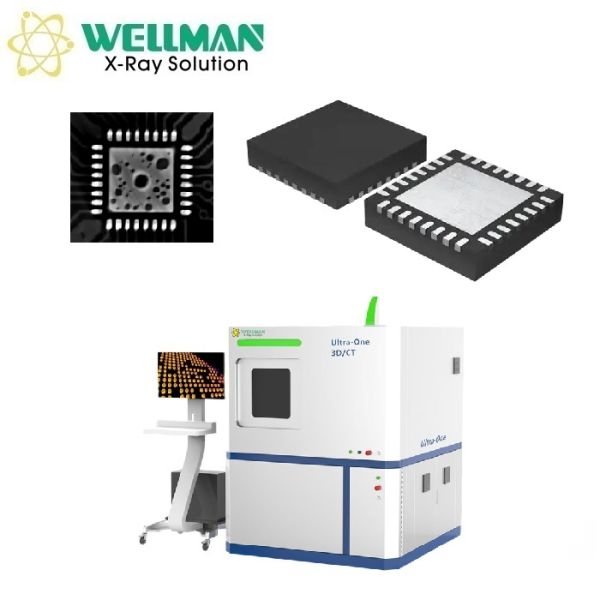

Name: 3D X Ray Inspection Equipment With Image Analysis And Scan Programming Capabilities
Brand: WELLMAN
Price: 1 USD

Brand Name : WELLMAN

Model Number : Ultra-One 3D/CT

Certification : CE，FDA

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

X-ray Tube Type : Closed-tube X-ray source

Tube voltage range : 20-160 KV

Pixel matrix : 1536×1536

Equipment size : 1800 mm×1800 mm×2300 mm （Length × width × height）

Pixel size : 100μm

Contact Now

Nanoscale CT/3D inspection equipment

Detection Applications

Equipment Characteristics

Technical Specifications

X-ray Source Parameters
X-ray Tube Type	Closed-tube X-ray source
Tube voltage range	20-160 KV
Detector parameter
Detector type	Amorphous silicon fat panel detector
Pixel size	100 μm
Pixel matrix	1536*1536

Equipment Performance Parameters Details
Maximum possible sample size	Flat test bench 580530mm Rotating test stand 300300mm Rollover test stand 250*300mm
Maximum imaging area	Flat test bench 460410mm Rotating test stand 300300mm Rollover test stand 250*100mm
JIMA card resolution	Standard 0.9μm, max 0.5μm
Equipment weight	4T
Equipment size	1800 mm1800 mm2300 mm (Length * width * height)
Imaging software system	Integrated scanning imaging software 3D image reconstruction software 3D image measurement and analysis software Image database management software
