Canon G-310VH-D Microfocus X-ray Source 4μm

Brand Name : Hamamatsu

Model Number : G-310VH-D

Place of Origin : JAPAN

MOQ : 1

Payment Terms : T/T

Delivery Time : 30 days

Packaging Details : carton

Target Material : Tungsten

Communication method : Interface: RS-232C(9-pin D-sub connector)

Contact Now

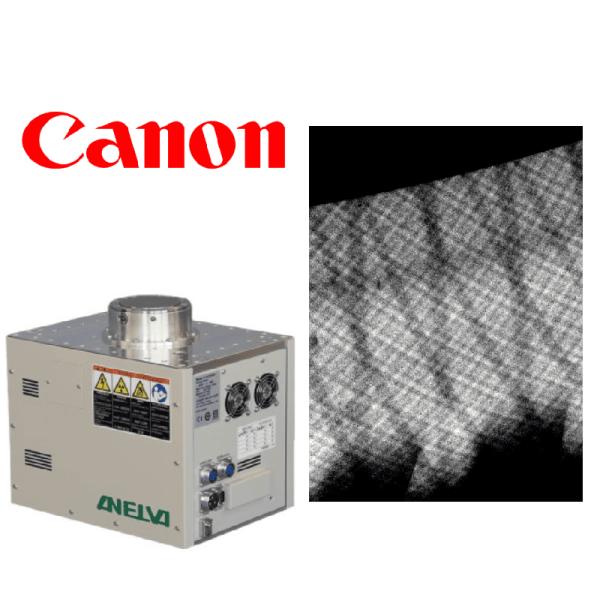

Canon G-310VH-D Microfocus X-ray Source
The G-310VH-D Microfocus X-ray Source is a high-performance industrial imaging solution designed to provide clear and detailed X-ray images. It features a minimum resolution of 4μm, making it ideal for non-destructive inspection applications in industries such as electronics, automotive, and aerospace. This compact and efficient device enhances imaging efficiency and precision, ensuring reliable and accurate results.
Canon G-310VH-D Microfocus X-ray Source 4μm
Key Features:
  1. Achieves a minimum resolution of 4μm for detailed imaging.
  2. Compact design with a weight of 21 kg (including inverter) for easy integration and handling.
  3. Forced convection cooling method ensures stable operation.
  4. Sealed transmission X-ray tube with a diamond window for high efficiency.
  5. Continuous operation capability with a maximum power consumption of 53W.
  6. Wide operational range for tube voltage (60-100kV) and current (10-200μA).
  7. External control via RS-232C (with G-311MH-DP) for versatile integration.
  8. Compliance with international safety standards for reliable and safe operation.
Technical Datasheet:
Mechanical Specifications:
  • Dimensions: Refer to drawing (Unit: mm)
  • Weight: 21 kg (including inverter)
  • Installation: 8 x M5, Depth 5, Φ150
Electrical Specifications:
  • Maximum Power Consumption: 53W
  • Input Voltage: DC 24V
  • Tube Voltage Operational Range: 60-100kV
  • Tube Current Operational Range: 10-200μA
  • Maximum Output: 20W
Environmental Specifications:
  • Operational Ambient Temperature: 10°C to 45°C
  • Storage Temperature: 0°C to 50°C
  • Humidity: ≤85% (non-condensing)
X-ray Specifications:
  • X-ray Beam Angle: 168° (maximum), 80° (80%, equidistant)
  • X-ray Window Material/Thickness: C (Diamond) / 0.29mm
  • Target Material: W (Tungsten)
  • X-ray Dose Uniformity: Refer to graph (Page 2)
Control Specifications:
  • Operation Mode: Continuous
  • External Control: RS-232C (External contact input available with G-311MH-DP)
